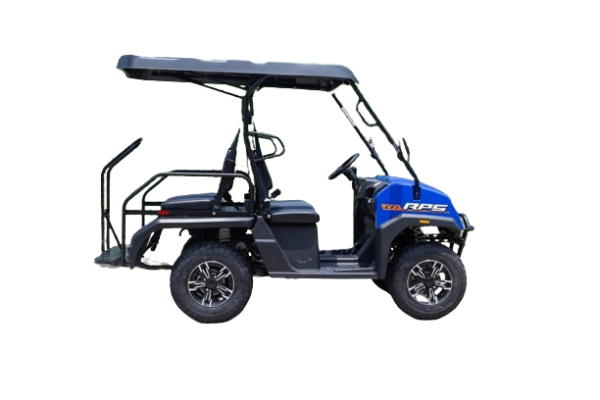

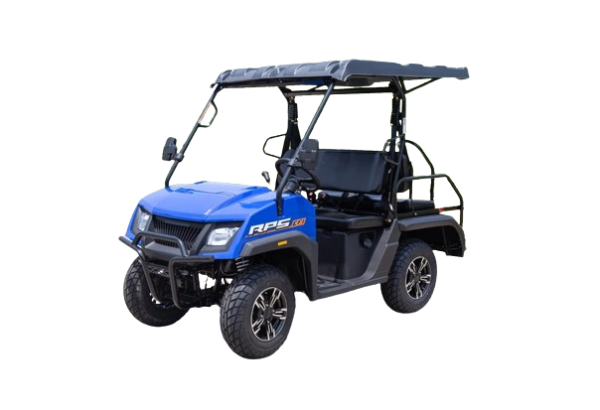

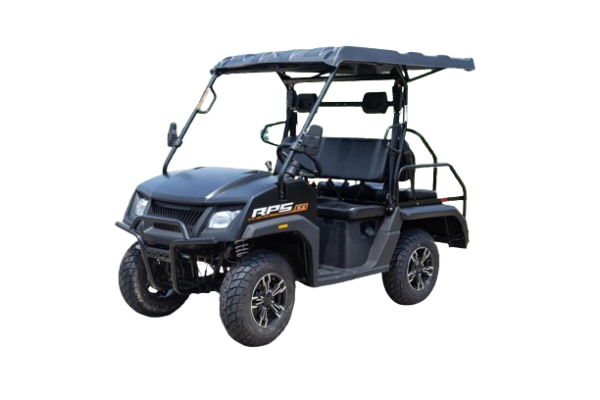

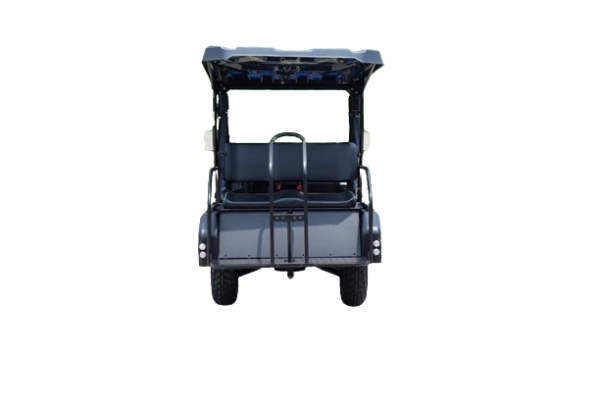

EFI 200cc GOLF CART

Specification & quotation Of LH250U(Dump Bed/Golf Version)

Basic configurationEFI, 2WD
Short hard roof (Dump bed) / Extension hard roof (Golf)
Flat Windshield
LED front lamp, turn signal & daytime running light
Aluminium wheel
Mesh door
12V 9AH battery
Two side rear view mirror
Arm rest

ColorsDump bed: Red, Blue, Black, Camouflage/Golf version: Red, Black, Blue

Vehicle SpecificationLength×Width×Height mm 2362X1397X1870(dump bed) 2880X1397X1870(dump bed)

Wheelbase mm1620

Minimum ground clearance mm260

Weight with full equipments KG390(dump bed)/405(golf version)

Weight with full load KG320(dump bed)/340(golf version)

Maximum Speed km/h45/40

Brake Type (front/rear) Disk/Disk

Drive ModeFront / Rear Shaft Drive

Control ModeSteering Wheel

Suspension front/rearFront MacPherson, Rear Dual A-ARM

Transmission ModeShaft Drive, H/L Speed Transmission

Dump Bed Size711x1210x337 dump 35°

Engine SpecificationEngine Type Single Cylinder, Four Stroke, Forced Air and Oil Cooling, Balance shaft

Ignition CoilECU

Cylinder Volume(ml) 177.3

Compression Ratio9.6:1

Max Power and Crankshaft Speed kW/(RPM)9.0kW/7000~7500r/min

Max Torque and Crankshaft Speed N.m/(RPM)13.2N.m/6000r/min

Fuel #87 Unleaded Gasoline

Lubrication Pressure and Splash

Clutch Automatic Centrifugal(CVT)

Start-Up ModeElectric Start
